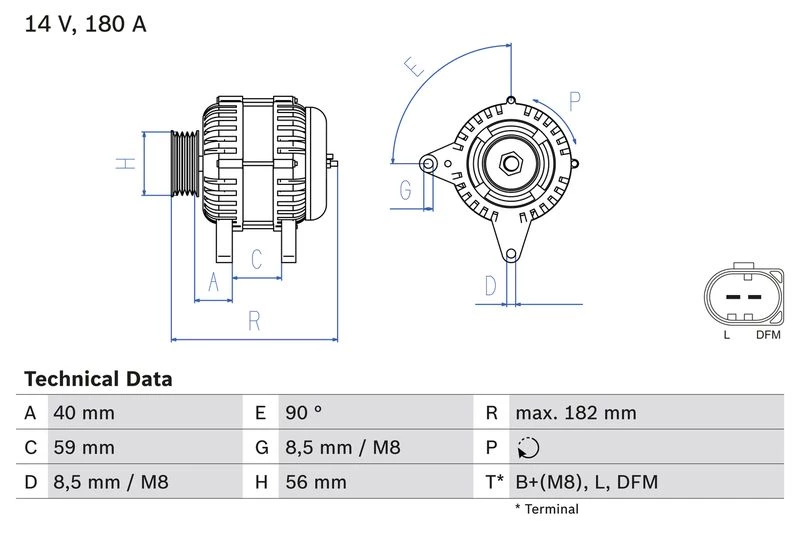

Properties
| Length (mm) | 201 |

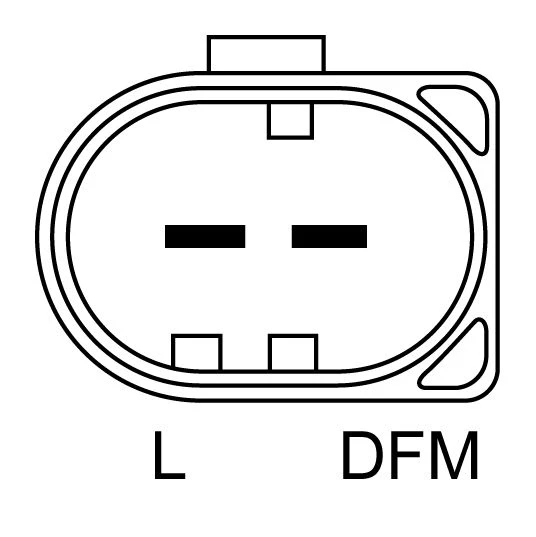

| Plug-type id | pl61 |
| Clamp | b1+(m8),dfm,l |
| Recommended additional repairs | v-belt/v-ribbed belt |
| Alternator type | excl. vacuum pump |
| Fastening type | double pivot lever |
| Rotation direction | clockwise rotation |
| Alternator charging current (A) | 140 |
| Pulleys | with freewheel belt pulley |
| Belt pulley Ø (mm) | 56.2 |
| Number of grooves | 6 |
| Voltage (V) | 14 |
| Distance from belt pulley to alternator (mm) | 39.6 |
Accepted Payment Options
Shipping Options
DPD Nederland
Express delivery
UPS
Express delivery
PostNL
Express delivery
DHL
Express delivery
Smart Search
technical support
Fast delivery
Competitive prices
Smart Search
technical support
Fast delivery
Competitive prices
| Manufacturer | Productnumber |
| audi | 028 903 029 N , 028903029N |
| audi | 03L 903 023 F , 03L903023F |
| audi | 06F 903 023 A , 06F903023A |
| audi | 06F 903 023 C , 06F903023C |
| audi | 06F 903 023 F , 06F903023F |
| audi | 06F 903 023 J , 06F903023J |
| mercedes-benz | HVW0001540102 |
| seat | 03L 903 023 F , 03L903023F |
| seat | 06F 903 023 A , 06F903023A |
| seat | 06F 903 023 F , 06F903023F |
| seat | 06F 903 023 J , 06F903023J |
| seat | 06F903023F |
| skoda | 03L 903 023 F , 03L903023F |
| skoda | 06F 903 023 A , 06F903023A |
| skoda | 06F 903 023 C , 06F903023C |
| skoda | 06F 903 023 F , 06F903023F |
| vw | 028 903 029 N , 028903029N |
| vw | 028 903 029 NX , 028903029NX |
| vw | 03L 903 023 F , 03L903023F |
| vw | 06F 903 023 A , 06F903023A |
| vw | 06F 903 023 AX , 06F903023AX |
| vw | 06F 903 023 C , 06F903023C |
| vw | 06F 903 023 CX , 06F903023CX |
| vw | 06F 903 023 F , 06F903023F |
| vw | 06F 903 023 FX , 06F903023FX |
| vw | 06F 903 023 H , 06F903023H |
| vw | 06F 903 023 HX , 06F903023HX |
| vw | 06F 903 023 J , 06F903023J |
| karmann | 304183 |
| Usage numbers |
| 4534 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 audi |
||||||||
 seat |
||||||||
 skoda |
||||||||
 vw |
Do you have any questions about this product? Please feel free to contact us.
BOSCH
Files
There are no files to download
